X6E IP67 Programmable Constant Power LED Driver X6E

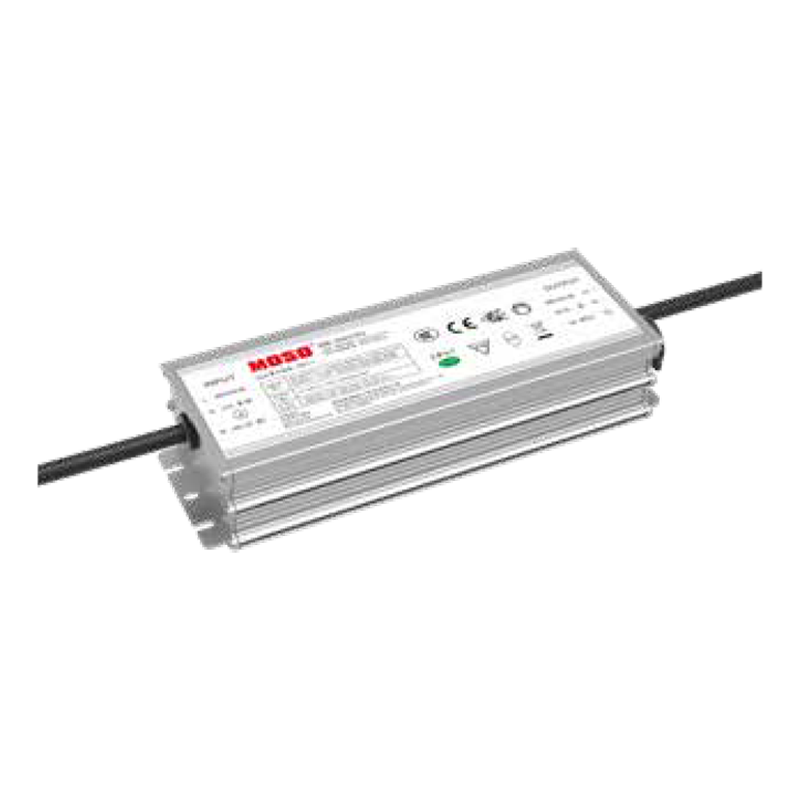

IP67 Programmable Constant Power LED Driver X6E

Built for demanding outdoor and industrial environments, the X6E is an IP67-rated programmable constant-power LED driver that combines isolation, intelligent control, and long-term durability in a single compact unit. The driver is purpose-designed for road lighting and industrial lighting—streetlights, highways, factories, and warehouses.

High 6 kV differential / 10 kV common-mode surge protection,  plus a true IP67 enclosure, directly tackle the real-world problems of moisture ingress, lightning strikes, voltage instability, and premature lumen depreciation. For projects that need more than an off-the-shelf solution, we offer flexible OEM and ODM support, allowing customization of electrical parameters, mechanical design, branding, and packaging while preserving the X6E’s core performance and certifications.

Form Drawing

Product Specification

Model X6E-075Y056 X6E-075Y075 X6E-075Y108 X6E-100Y056
Power (W) 75 75 75 100
Output voltage range (Vdc) 28~56 42～75 54～108 28~56
Adjustable full-power current range (A) 1.35~2.15 1.00～1.50 0.70～1.05 1.78~2.85
Default output 28~48V/1.55A 42～50V/1.50A 54～72V/1.05A 28~48V/2.05A
Typical efficiency 89.00% 90.50% 91.00% 89.00%
Typical power factor 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 132*68*35 128*68*37 128*68*37 138*68*35



Model X6E-100Y100 X6E-100Y143 X6E-150Y056 X6E-150Y150
Power (W) 100 100 150 150
Output voltage range (Vdc) 56～100 72~143 28~56 85～150
Adjustable full-power current range (A) 1.00～1.50 0.70～1.05 2.70~4.30 1.00～1.50
Default output 56~67V/1.50A 72~96V/1.05A 28~48V/3.10A 85～100V/1.50A
Typical efficiency 91.50% 91.50% 90.00% 91.50%
Typical power factor 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 133*68*37 133*68*37 171*68*37 158*68*39



Model X6E-150Y214 X6E-200Y056 X6E-200Y200 X6E-200Y286
Power (W) 150 200 200 200
Output voltage range (Vdc) 115~214 28~56 120～200 156~286
Adjustable full-power current range (A) 0.70～1.05 3.57~5.70 1.00～1.50 0.70～1.05
Default output 115～143V/1.05A 28~48V/4.15A 120~133V/1.50A 156～190V/1.05A
Typical efficiency 91.50% 92.00% 92.00% 93.00%
Typical power factor 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 158*68*39 197*68*37 174*68*39 174*68*39



Model X6E-240Y056 X6E-240Y240 X6E-240Y343
Power (W) 240 240 240
Output voltage range (Vdc) 28~56 130～240 171～343
Adjustable full-power current range (A) 4.30~6.85 1.00～1.50 0.70～1.05
Default output 28～48V/5.00A 130～160V/1.50A 171～228V/1.05A
Typical efficiency 92.50% 93.00% 93.00%
Typical power factor 0.97 0.97 0.97
Dimensions (L × W × H) mm 207*68*37 194*68*39 194*68*39
Inquiry Download
