LED Programmable Driver
Home / Products / LED Programmable Driver / Metal Housing Structure LED Driver DL-40H-A/S-MAL
DL-40H-A/S-MAL Metal Housing Structure LED Driver DL-40H-A/S-MAL

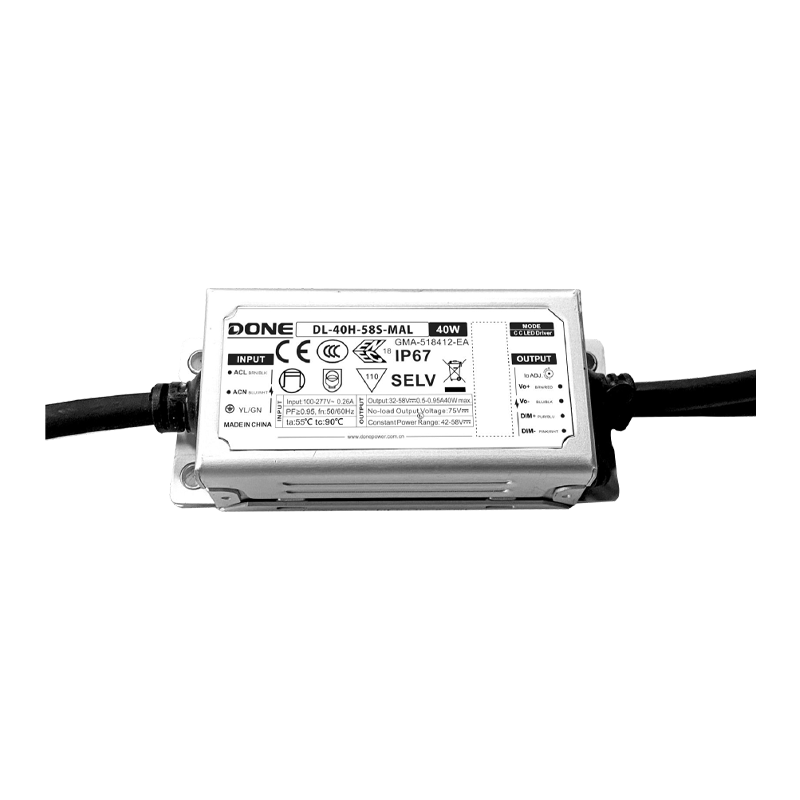

Metal Housing Structure LED Driver DL-40H-A/S-MAL

The Metal Housing Structure LED Driver DL-40H-A/S-MAL features a Class I construction and IP67 protection rating, providing reliable performance in outdoor and industrial environments. It is designed for street, industrial, and stadium lighting, as well as floodlighting, landscape, and plant lighting.

Core features include constant power design and constant current output control. The input voltage range is 100-277V, with a maximum output power of 40W at 200-277V and 20W at 100-150V. Two versions are available to meet different user needs: Version A allows for output current adjustment via an external potentiometer, while Version S offers isolated three-in-one dimming functionality.

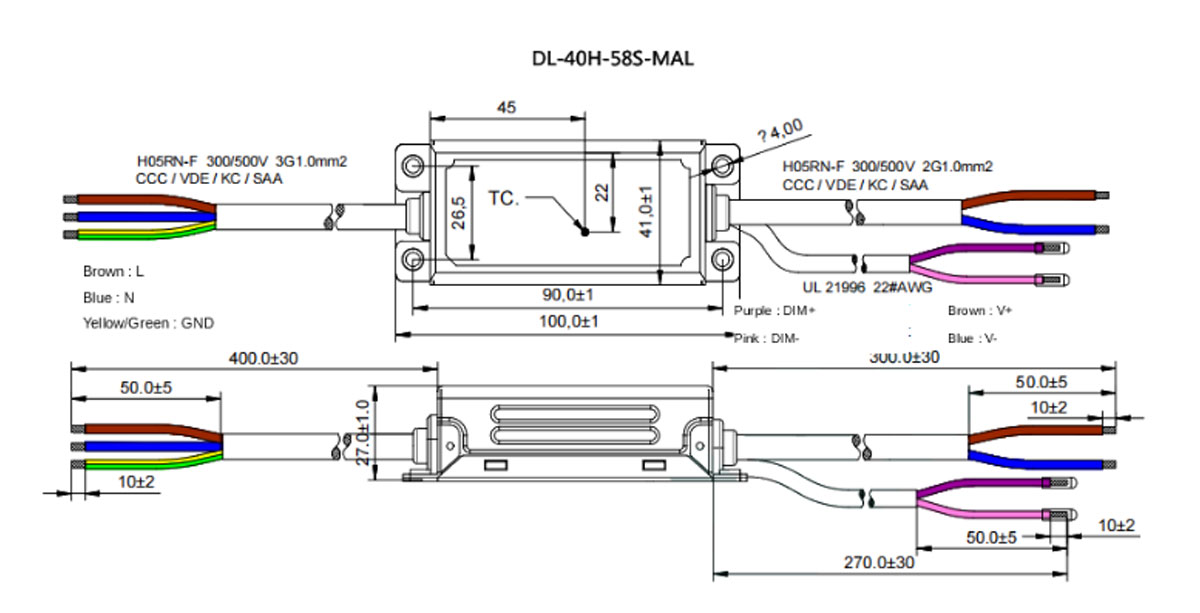

Form Drawing

mal-1

Product Specification

Model DL-40H-58S-MAL/ DL-4OH-58A-MAL
Input Voltage 100-277V 50/60Hz
Maximum Output Power 40W
Output Voltage Range 32-58Vdc
Output Current Range 0.5-0.95A
Factory Default Current 0.9A
Efficiency ≥88.5%
Harmonics (THD) ≤10%
Power Factor ≥0.95
Inquiry Download
