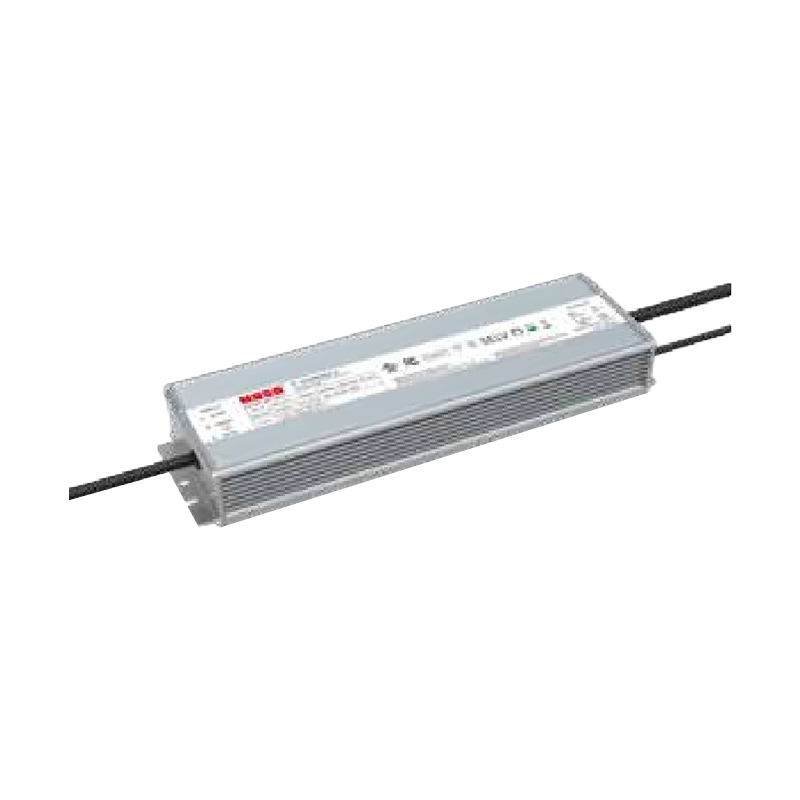

P7 Plant Lighting Supply with RJ11 & Knob-Dimming P7

Plant Lighting Supply with RJ11 & Knob-Dimming P7

Plant lighting needs stable power and practical dimming control, and the P7 Series is designed around these requirements. This Plant Lighting Supply with RJ11 & Knob-Dimming P7 supports plant lighting and high-power illumination applications, offering adjustable output through 0–10Vdc, PWM, or time-based dimming. An optional RJ11 interface and knob control make local adjustment convenient. The isolated driver design helps address control compatibility and output stability concerns. It also provides auxiliary output, IP67 protection, and multiple safety protections. ODM/OEM services are available for customized specifications, functions, and product configurations.

Form Drawing

Product Specification

Model P7-500M056A12 P7-500M056A12RJ P7-700M056A12
Power (W) 500 500 700
Output Voltage Range (Vdc) 30~56 30~56 30~56
Adjustable Full-Power Current Range (A) 8.92~10.50 8.92~10.50 12.50~14.50
Default Output 48~56V/8.92A 48~56V/8.92A 48~56V/12.50A
Typical Efficiency 95.00% 95.00% 95.00%
Typical Power Factor 0.97 0.97 0.97
Dimensions (L x W x H) mm 311*89*42 336*89*42 355*89*42



Model P7-700M056A12RJ P7-1K0M056A12 P7-1K0M056A12RJ
Power (W) 700 1000 1000
Output Voltage Range (Vdc) 30~56 30~56 30~56
Adjustable Full-Power Current Range (A) 12.50~14.50 17.86~21.00 17.86~21.00
Default Output 48~56V/12.50A 48~53V/18.88A 48~53V/18.88A
Typical Efficiency 95.00% 96.00% 96.00%
Typical Power Factor 0.97 0.97 0.97
Dimensions (L x W x H) mm 380*89*42 431*89*42 456*89*42
Inquiry Download
