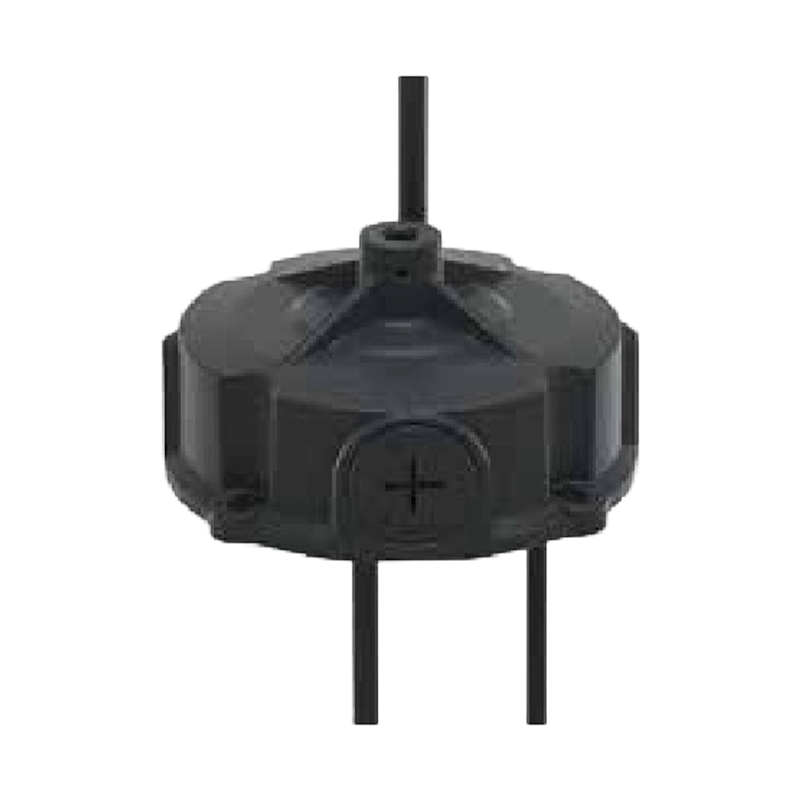

G6C-(II) Potentiometer Adjustable Non-Isolated Round Driver G6C (II)

Potentiometer Adjustable Non-Isolated Round Driver G6C (II)

Configuration stays simple at the hardware level with the Potentiometer Adjustable Round Non-Isolated Driver G6C-(II), which is suited for use in industrial lighting projects that call for precise output tuning without programming software. Its core function is a wide 108-380Vac input range combined with potentiometer-based current adjustment, which solves the problem of stocking multiple driver variants for regions with inconsistent grid voltage. Surge resistance meeting ANSIC82.77-5 and 6KV common-mode standards addresses durability demands in industrial settings prone to electrical noise, while IP65 sealing and a 5-year warranty round out its reliability profile. OEM/ODM programs let manufacturers adjust wattage ranges, connector styles, and branding.

Form Drawing

Product Specification

Model G6C-120M260A12(II) G6C-160M260A12(II) G6C-200M260A12(II)
Power (W) 120 160 200
Output voltage range (Vdc) 180～260 180～260 180～260
Adjustable output current range (A) 0.30～0.56 0.40～0.74 0.50～0.93
Typical efficiency 94.00% 95.00% 95.00%
Typical power factor (PF) 0.97 0.97 0.97
Dimensions (φ × H) mm 127*59 127*59 127*59



Model G6C-240M260A12(II) G6C-320M260A12(II)
Power (W) 240 320
Output voltage range (Vdc) 180～260 180～260
Adjustable output current range (A) 0.60 ～1.10 0.80～1.48
Typical efficiency 95.00% 96.00%
Typical power factor (PF) 0.97 0.97
Dimensions (φ × H) mm 127*59 146*62
