G-Class Commercial Stadium Flood Light HS-DG

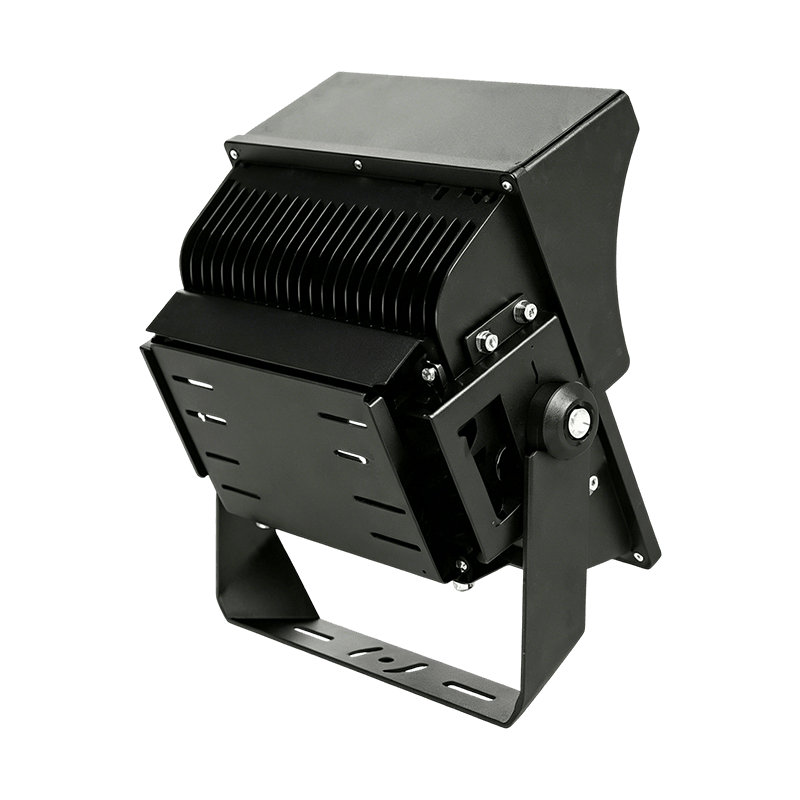

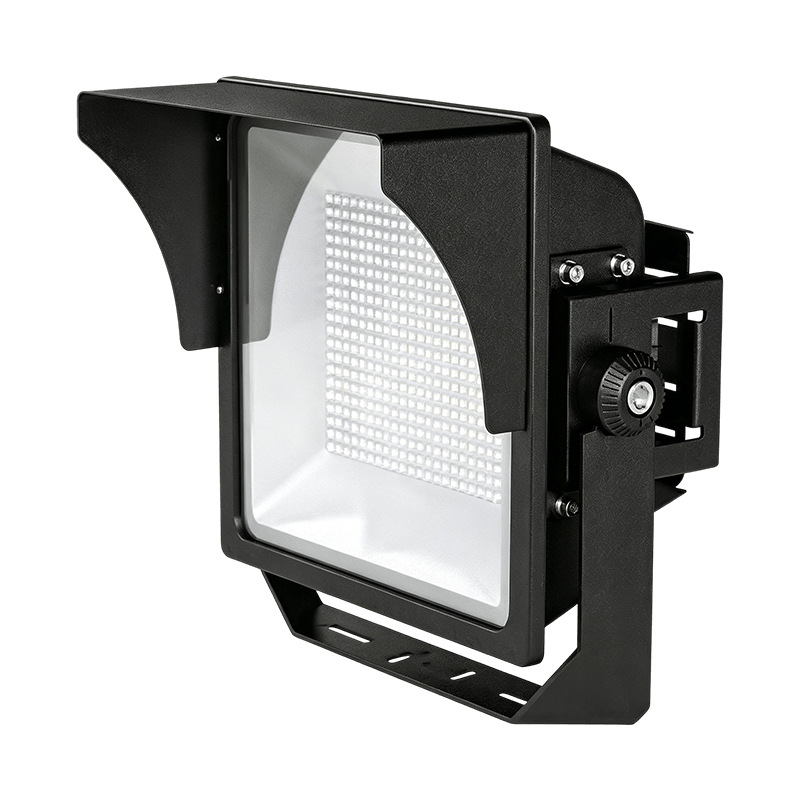

Commercial Stadium Flood Light HS-DG

Commercial Stadium Flood Light HS-DG is a high-performance lighting product designed for commercial stadium and large venue applications. It is widely used in airports, stadiums, public squares, and exhibition areas. Its core function is to provide powerful flood illumination with adjustable angles for different project needs. Customers choose it to achieve professional lighting quality and reduce maintenance costs. We provide powder-coated housing and modular optical design for flexibility. OEM/ODM includes beam customization, housing finish, and installation system options.

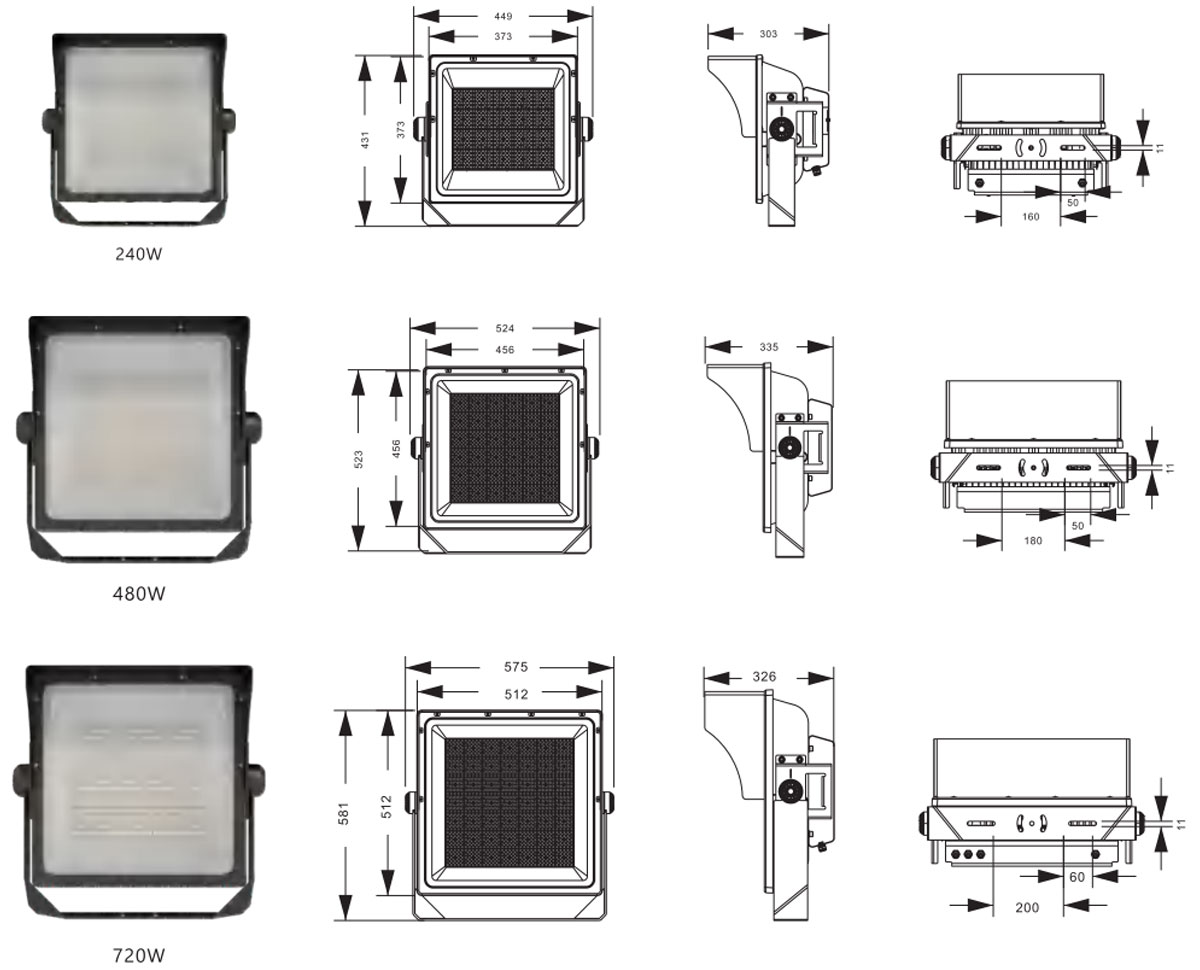

Form Drawing

Product Specification

Input Voltage AC100V-250V50HZ/DC24V
Security level Class I/Class III
LED Brand
Drive electric Brand-name power supply
Control Mode Switch control/PMX512 control



Product Model Product Power Weight Product Dimensions Packaging Dimensions Lens Angle
G-Class 240W-300W 10.2KG 449x431x303mm 550x460x320mm 24°/55°/90
G-Class 480W-600W 17.5KG 524x523x320mm 570x550x345mm 24°/55°/90
G-Class 720W-800W 23KG 575x581x326mm 660x600x350mm 24°/55°/90
