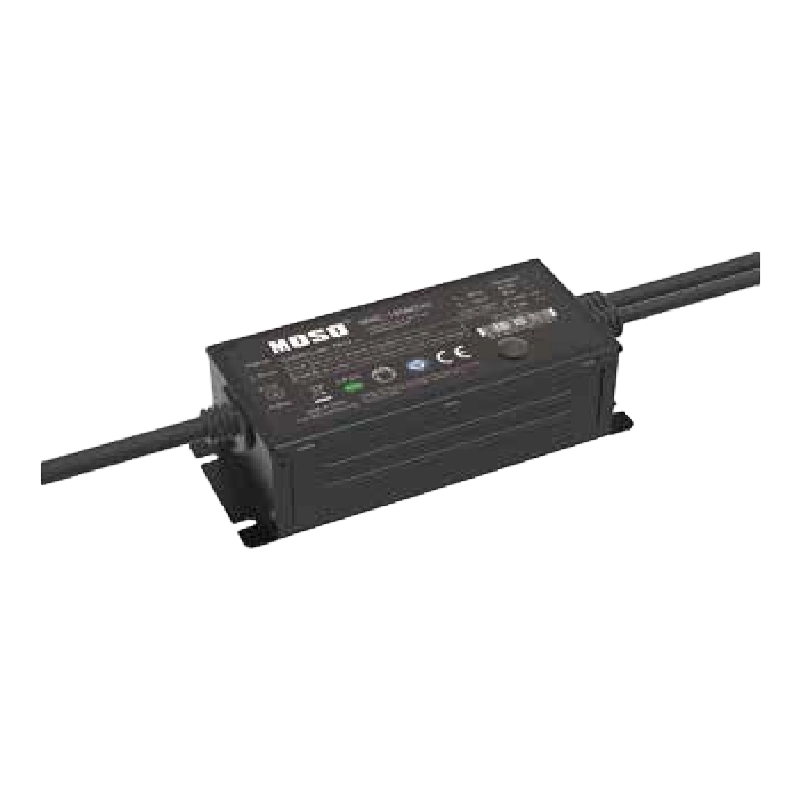

N6(MNC) Programmable LED Driver with Flexible Dimming N6 (MNC)

Programmable LED Driver with Flexible Dimming N6 (MNC)

Flexible Dimming Options Programmable Driver N6(MNC) supplies versatile non-isolated constant-current power for projects that demand precise light control and wide input tolerance. Applied to linear high-bay, flood, wall-pack and canopy luminaires operating from 90–305 Vac. Core function is flexible multi-protocol dimming combined with 4 kV differential / 6 kV common-mode surge protection, output short-circuit, over-voltage and over-temperature safeguards, all housed in an IP65 enclosure. OEM/ODM services include programmable current profiles, custom dimming curves, branding and form-factor modifications that let manufacturers match the driver exactly.

Form Drawing

Product Specification

Model MNC-060Y240 MNC-100Y240 MNC-150Y240
Power (W) 60 100 150
Output voltage range (Vdc) 170~240 170~240 170~240
Adjustable output current range (A) 0.17~0.32 0.32~0.46 0.50~0.71
Typical efficiency 93.00% 94.00% 94.00%
Typical power factor (PF) 0.97 0.97 0.97
Dimensions (L × W × H) mm 124*62*31 138*55*37 138*55*37



Model MNC-200Y240 MNC-240Y240
Power (W) 200 240
Output voltage range (Vdc) 170~240 170~240
Adjustable output current range (A) 0.70~1.10 0.77 ~1.10
Typical efficiency 95.00% 95.00%
Typical power factor (PF) 0.97 0.97
Dimensions (L × W × H) mm 151*64*42 183*64*43
