LED Wall Washer
Home / Products / LED Facade Lighting / LED Wall Washer / High Brightness Wall Washer GZD-XQD-4225/4225D

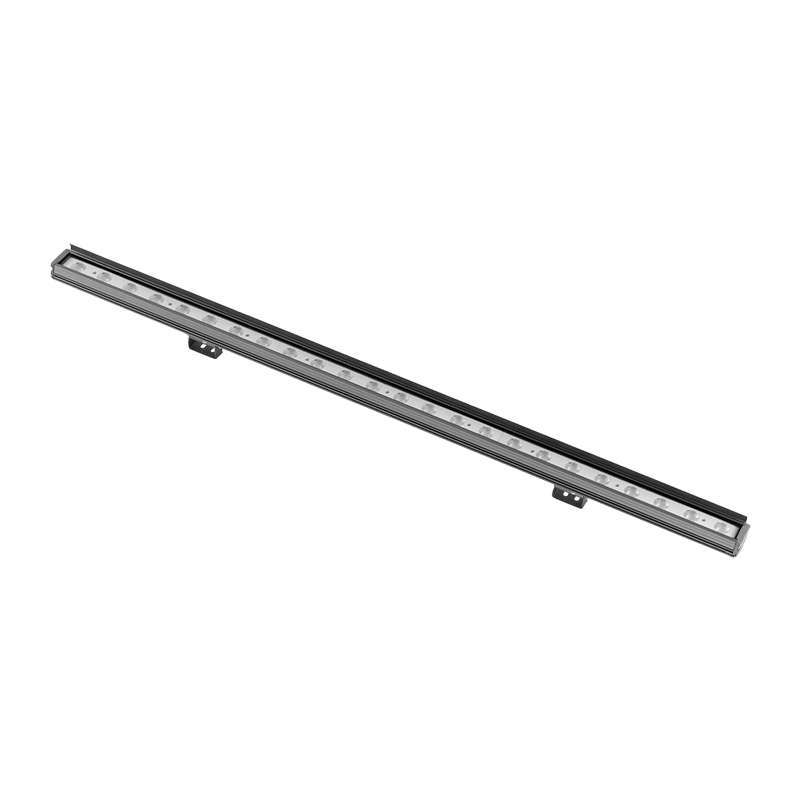

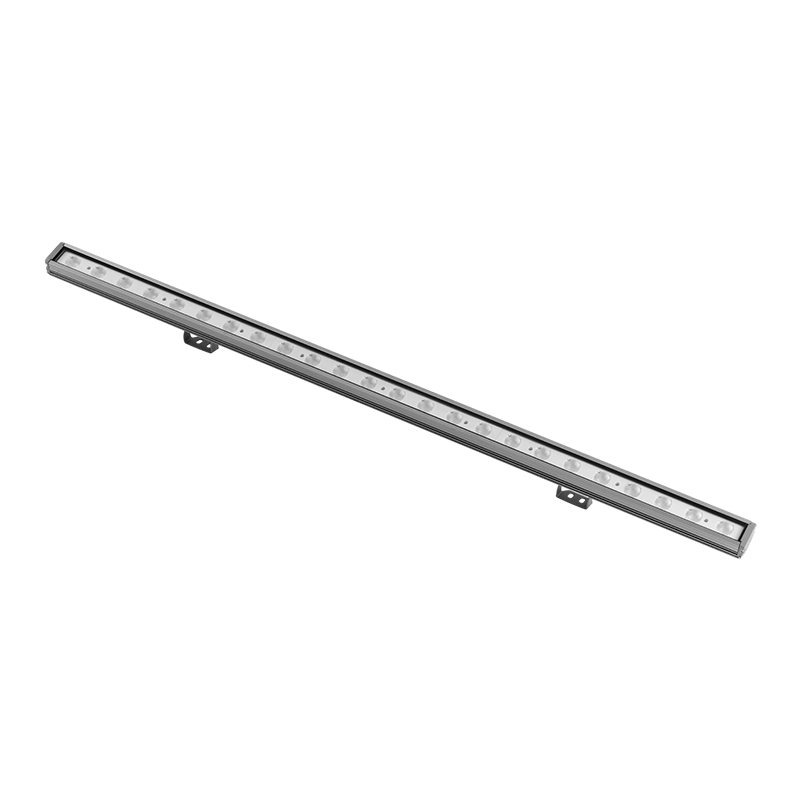

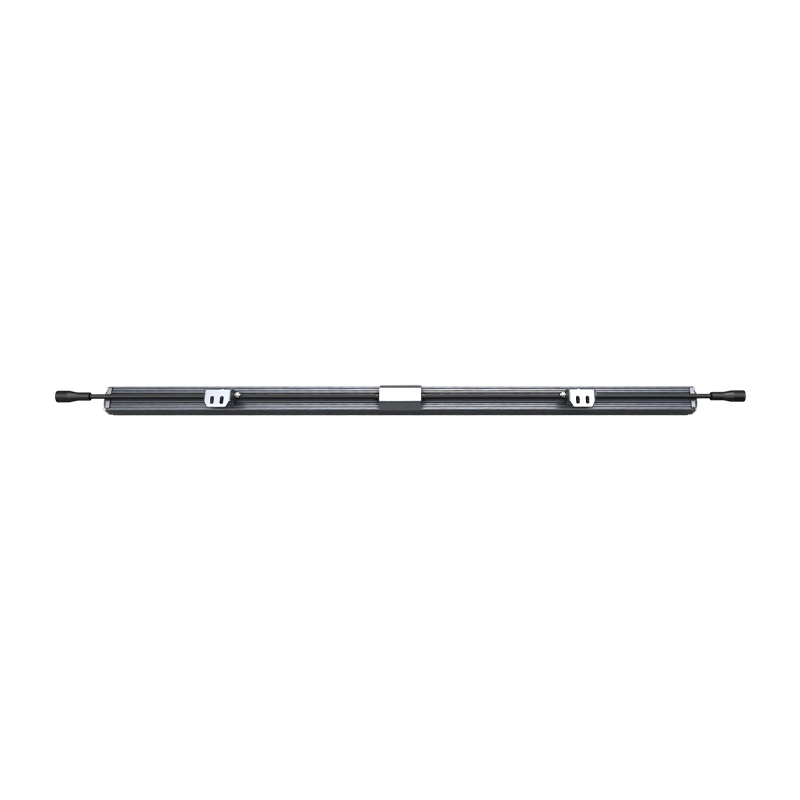

GZD-XQD-4225/4225D High Brightness Wall Washer GZD-XQD-4225/4225D

High Brightness Wall Washer GZD-XQD-4225/4225D

High Brightness Wall Washer GZD-XQD-4225/4225D is a high-intensity lighting fixture engineered for large-scale façade and billboard illumination. It is widely used in stadiums, commercial signage, entertainment venues, and public landmarks. Its main function is to deliver extremely powerful brightness with long-distance projection capability. Customers purchase it to achieve maximum visual impact and ensure visibility at night in high-demand lighting environments. Compared to standard wall washers, it offers higher lumen output and stronger beam penetration. We ensure premium LED sourcing, efficient heat dissipation, and stable driver performance. OEM/ODM options include wattage adjustment, beam shaping, and control protocol integration.

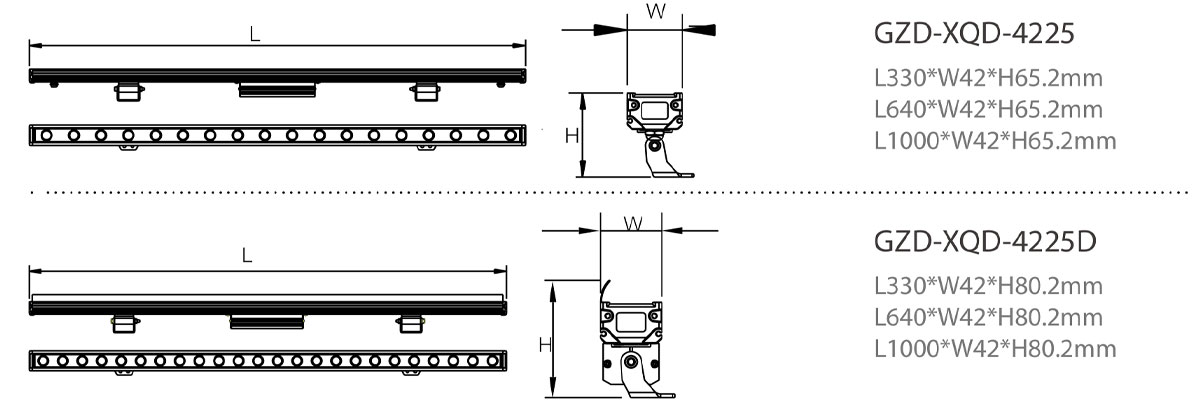

Form Drawing

Product Specification

Item NO. GZD-XQD-4225 GZD-XQD-4225D
Light Source Epileds /Bridgelux /Epistar /Osram /Cree Epileds /Bridgelux /Epistar /Osram /Cree
Input Voltage DC12-24V AC 85-265V DC12-24V AC 85-265V
Power 24-36W 24-36W
LED Color R /G /B/Y/W /WW/RGB/RGBW R /G /B/Y/W /WW /RGB /RGBW
Beam Angle 10*45/10*65°/ 60°/90°/ 110 10*45°/ 10*65°/ 60°/90°/ 110
Light Output Ratio(LOR) 80LM/W 80LM/W
CCT 1800-6500K 1800-6500K
Control Mode DMX512/steady DMX512 /steady
Environment Temperature -20-45°C -20-45°℃
IP Rate IP65 IP65
Inquiry Download
