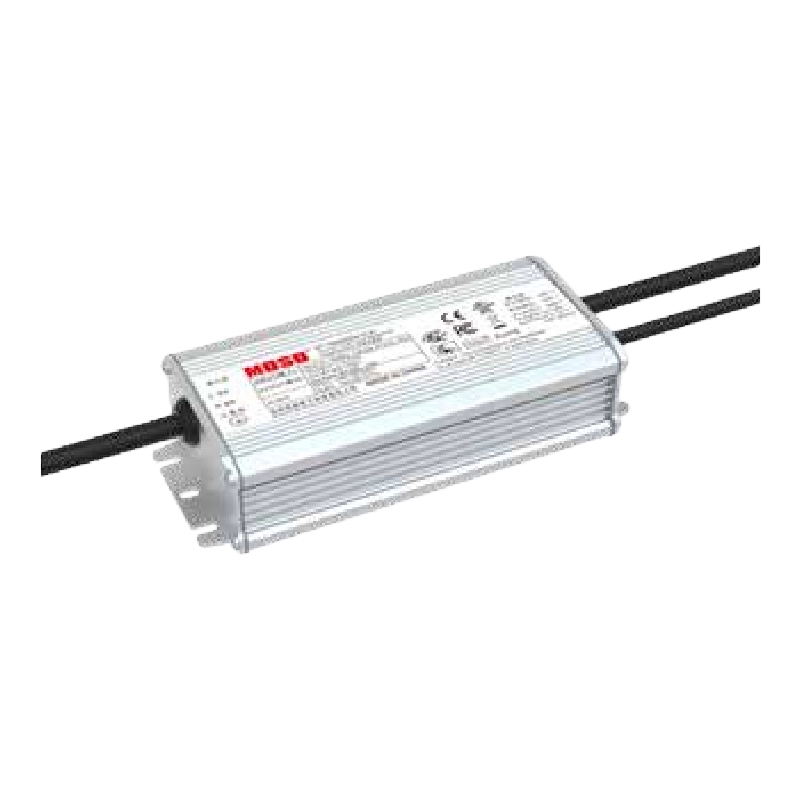

N7-(II) Timer Dimming Programmable LED Driver N7 (II)

Timer Dimming Programmable LED Driver N7 (II)

Timer Dimming Non-Isolated Programmable Driver N7-(II) enables automatic brightness management without external timers. Linear high-bay, flood, wall and shoe-box lighting projects represent the primary usage environments. Non-isolated constant-current architecture, 90–305 Vac input, three-in-one dimming plus dedicated time-control profiles, offline programmable current and optional 12 V auxiliary output form the key capabilities. Differential 6 kV / common-mode 10 kV surge protection, comprehensive output safeguards, IP67 rating and five-year warranty support reliable outdoor and industrial duty. OEM/ODM collaboration allows tailored timer sequences, power ratings and labeling so producers can offer differentiated energy-saving solutions.

Form Drawing

Product Specification

Model N7-080Y300Z(II) N7-100Y300Z(II) N7-150Y300Z(II) N7-200Y300Z(II)
Power (W) 80 100 150 200
Output voltage range (Vdc) 180~300 180~300 180~300 180~300
Adjustable output current range (A) 0.10~0.37 0.12~0.56 0.15~0.74 0.20~0.93
Typical efficiency 95.00% 97.00% 97.00% 97.00%
Typical power factor (PF) 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 135*63*34 151*63*34 151*63*34 166*63*34



Model N7-240Y300Z(II) N7-320Y300Z(II) N7-400Y300Z(II)
Power (W) 240 320 400
Output voltage range (Vdc) 180~300 180~300 180~300
Adjustable output current range (A) 0.22~1.10 0.30~1.50 0.36~1.80
Typical efficiency 97.00% 97.00% 97.00%
Typical power factor (PF) 0.97 0.97 0.97
Dimensions (L × W × H) mm 166*63*34 207*63*34 255*63*34
